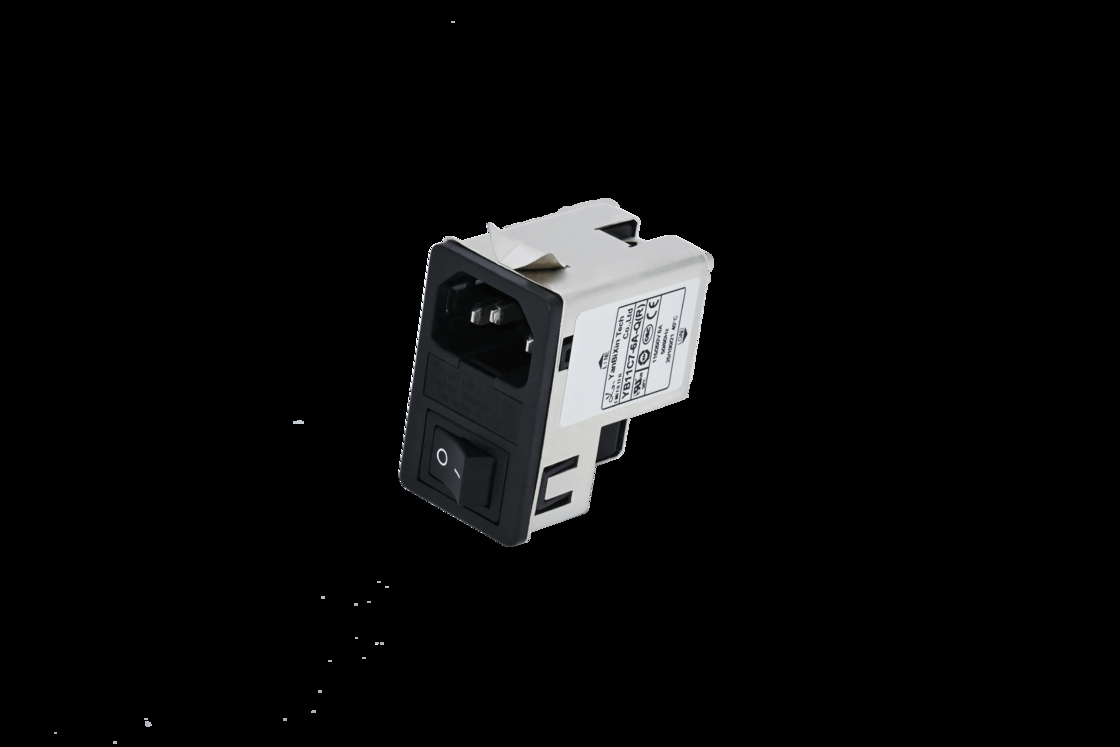

Name: Special Type Socket EMI Filter With Fuse And Switch 1A~10A Power Entry Module Filter
Brand: Shenzhen Yanbixin Technology Co., Ltd.
SKU: YB11C7-3A-Q
Price: 4.00 USD
Availability: InStock

Rumah > Produk > Hubungkan Filter RFI >

Special Type Socket EMI Filter With Fuse And Switch 1A~10A Power Entry Module Filter

Tempat asal:

Cina

Nama merek:

YBX

Sertifikasi:

UL, TUV, CE, CQC, ROHS

Nomor model:

YB11C7-3A-Q

Hubungi kami

Permintaan Penawaran

Rincian Produk

Peringkat tegangan:

115V/250V

Peringkat saat ini:

1-10A

Arus bocor:

0.4mA 115V/60HZ; 0,4mA 115V/60HZ; 0.8mA 250V/50HZ 0,8mA 250V/50HZ

Frekuensi Operasi:

50Hz/60Hz

Kisaran suhu:

-25°C~+100°C

Soket saluran masuk:

IEC 320

Bahan:

Matel dan plastik

Periode garansi:

2 tahun

PERINGKAT HIPORT (selama satu menit):

GARIS KE TANAH ------ 2250VDC GARIS KE GARIS ------- 1450VDC

Frekuensi operasi:

DC ke 400Hz

Sifat mudah terbakar sesuai dengan:

UL 94V-0

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

100

Harga

$1~$8 /PCS

Kemasan rincian

Karton: 56.5*28.5*22.5 (cm); 108pcs/kotak

Waktu pengiriman

10-20 hari

Syarat-syarat pembayaran

T/t, l/c

Menyediakan kemampuan

100000 potong/potong per bulan

Produk-produk terkait

video

Special Type Socket EMI Filter With Fuse And Switch 1A~10A Power Entry Module Filter

Dapatkan Harga Terbaik

video

High Quality A13 IEC Inlet Filter 1A~20A Socket EMI Filter For Data Equipment

Dapatkan Harga Terbaik

video

YB22A5-20A-Q IEC Inlet EMI Filter UL Sertifikat 115V 250V Socket Type Filter utama

Dapatkan Harga Terbaik

video

YB11A5-6A-Q(R) IEC C13 Inlet EMI Filter 115V 250V Socket Type Power Filter

Dapatkan Harga Terbaik

Hubungi kami

+86 ‭18118799639‬

alisa@ybx-emc.com

86-755-27147101

Hubungi sekarang

Deskripsi Produk

Special Type Socket EMI Filter With Fuse And Switch 1A~10A Power Entry Module Filter

IEC inlet filters YB-C series

Features:

-- Rated currents up to 10A

-- Single fuse holder

-- 2-pole rocker switch

-- General-purpose application

-- Approvals:

Special Type Socket EMI Filter With Fuse And Switch 1A~10A Power Entry Module Filter 0

Rule of Nomination:

YB 11 C7 - 3A - Q ( R5 )

¦ ¦ ¦ ¦ ¦

circuit case current connection optional

Electrical schematic:

Standard type

Special Type Socket EMI Filter With Fuse And Switch 1A~10A Power Entry Module Filter 1

R5 type

Special Type Socket EMI Filter With Fuse And Switch 1A~10A Power Entry Module Filter 2

Tabulates:

Rated Current
@40°C

Terminal Options*

Bleeder resistor

(optional)

Ground
(Optional)

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

Model No.

YB11C7-1A

<0.8mA

Fig.1

115/250V

50/60Hz

YB11C7-2A

Fig.1

YB11C7-3A

Fig.1

YB11C7-4A

Fig.1

YB11C7-6A

Fig.1

YB11C7-8A

Fig.1

YB11C7-10A

10A

Fig.1

YB11C7-1A

Fig.1

YB11C7-2A

Fig.1

YB11C7-3A

Fig.1

YB11C7-4A

Fig.1

YB11C7-6A

Fig.1

YB11C7-8A

Fig.1

YB11C7-10A

10A

Fig.1

Medical Type Tabulates:

Rated Current
@40°C

Terminal Options

Bleeder resistor (optional)R(MΩ)

Medical equipment
(optional)5

Ground (optional)

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

Model No.

YB11C7-1A-x(R5)

<5μA

Fig.2

115/250V

50/60Hz

YB11C7-2A-x(R5)

Fig.2

YB11C7-3A-x(R5)

Fig.2

YB11C7-4A-x(R5)

Fig.2

YB11C7-6A-x(R5)

Fig.2

YB11C7-8A-x(R5)

Fig.2

YB11C7-10A-x(R5)

10A

Fig.2

Special Type Socket EMI Filter With Fuse And Switch 1A~10A Power Entry Module Filter 9 *Q: Fast-on 6.35x0.8mm S: solder 4.0x0.8mm W: UL1015 18awg

Mechanical Dimension(Unit: mm)

C Case

Special Type Socket EMI Filter With Fuse And Switch 1A~10A Power Entry Module Filter 12

YB11C7-10A-Q Product Pictures:

Insertion loss table(In 50ohm system according to IEC/CISPR No.17):

differential mode

1A 3A 6A

Special Type Socket EMI Filter With Fuse And Switch 1A~10A Power Entry Module Filter 14

8A 10A

Special Type Socket EMI Filter With Fuse And Switch 1A~10A Power Entry Module Filter 17

Shipment:

---Shipping terms: DHL, UPS, FedEx, TNT, EMS

---Port is Shenzhen or as requests.

Factory Pictures:

Special Type Socket EMI Filter With Fuse And Switch 1A~10A Power Entry Module Filter 20

Special Type Socket EMI Filter With Fuse And Switch 1A~10A Power Entry Module Filter 21
